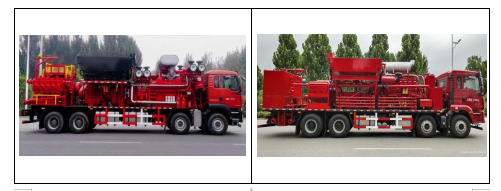

Application: it is a special oil vehicle refitted from automobile chassis, mainly used for high-pressure water injection, fracturing, sand control, and pressure testing operations in oil fields.

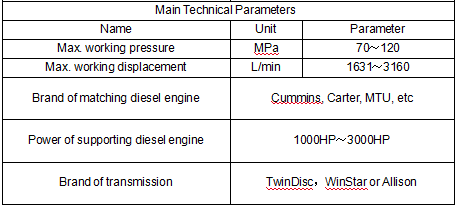

Product function: Its power is provided by the vehicle's diesel engine, equipped with a high-pressure plunger pump, high-pressure manifold, and electronic control system. The maximum working pressure is 120MPa, with a power range of 1000HP to 3000HP. The electric control system is controlled by a ring network, and can be remotely connected. Up to 8 devices can be controlled simultaneously, with a maximum control distance of 50m. It is equipped with a portable remote control box and a wire roller.

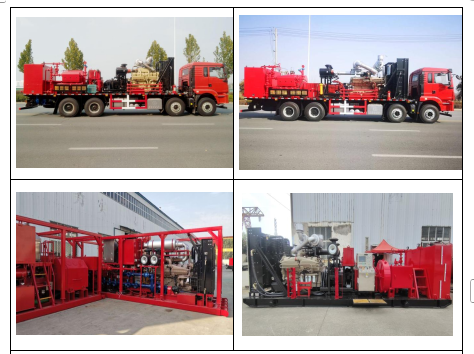

Product classification: It is classified into two types by drive type: diesel drive and electric drive; classified by structural form, there are two types: vehicle mounted and skid-mounted to meet the needs of different user groups.
